This section provides general information on installing StudioBIM software, including equipment requirements and instructions for installation and uninstallation.
Add-in installation: General information
Virus scanners
Active virus scanner software may prevent the installation or can slow down the installation. To avoid this, the user can temporarily disable the virus scanner. However, there are certain risks when the virus scanner is disabled. The user must remember to re-enable the virus scanner after installation.
myULMA ID
To download the StudioBIM software, users must have a registered myULMA ID. After downloading and installing the software, they will need to log in with their myULMA ID to use it.
Installation paths
C:\Users\”username”\AppData\Roaming\Autodesk\Revit\Addins\”Revit version”
REQUIREMENTS
| Application | Revit 2023 |
|
Operating System |
64-bit Microsoft® Windows® 10 or Windows 11. |
|
.NET Framework |
.NET Framework Version 4.8. |
|
.NET Core |
.NET Core Version 6.0.20 or later. |
|
Connectivity |
Internet and FTP connection for registration, downloading of the necessary components and updates. |
INSTALL StudioBIM
- Exit Revit®.

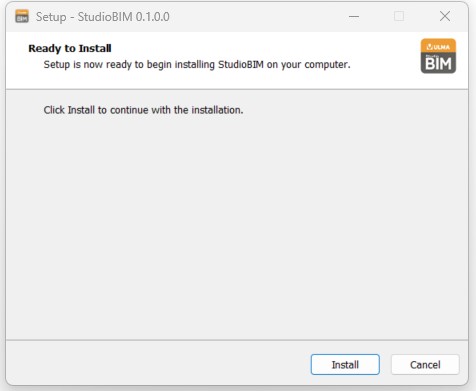

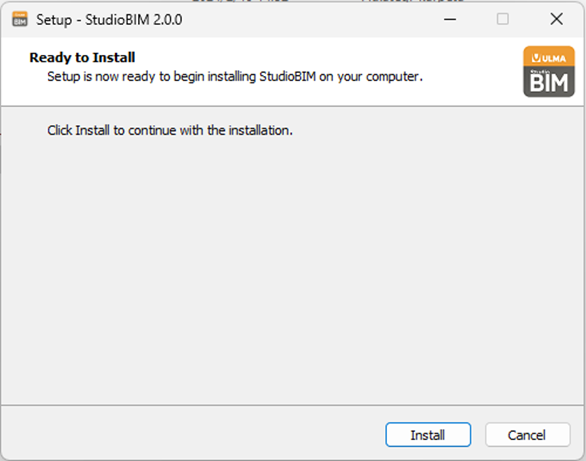

- Double-click on the downloaded file to start the installation of StudioBIM.
-

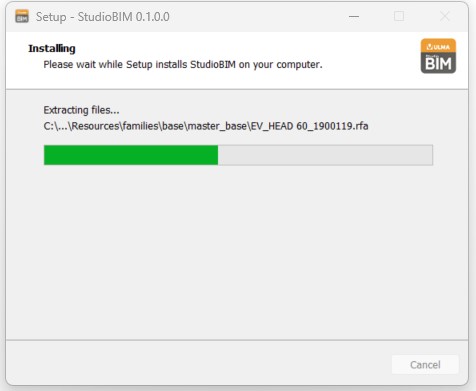

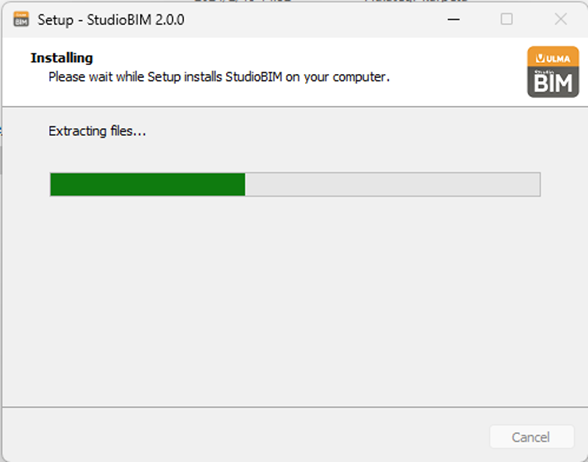

Wait for the installation to complete.
-

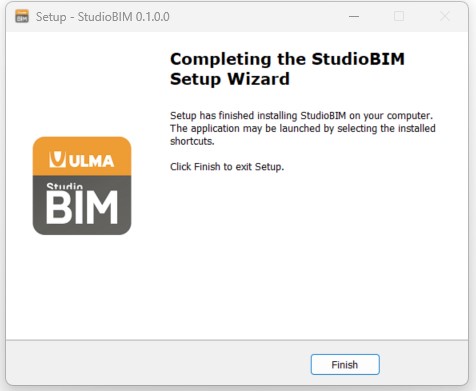

Once the installation is complete, the last step is to finalize it.
-
StudioBIM is accessible though the Revit® ribbon.
UNINSTALL StudioBIM

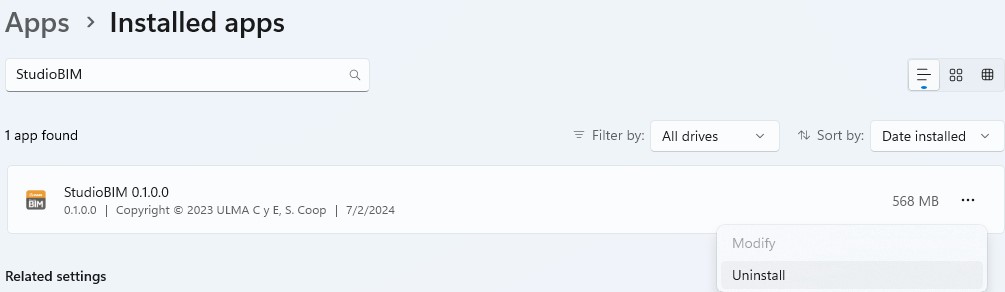

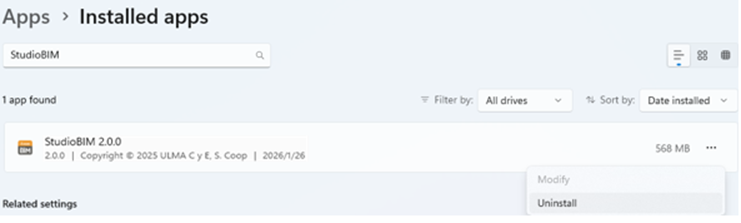

To uninstall StudioBIM, go to Control Panel > Programs. A list of installed programs will be displayed. Select the program to uninstall and click 'Uninstall', then follow the instructions provided in the following dialogs.
