ULMA Construction families: Family Browser/Searcher (Browser)

GENERAL CONSIDERATIONS

The families are inserted using the [Browser]. This button opens the ULMA Construction family library, where all the family resources are located.

The browser is divided in different folders. This differentiation is based on:

• The browser is divided by systems:
  • AND/SCF: Scaffolding
  • COM: Common elements
  • EHL/LHF: Lightweight Horizontal Formwork
  • EHP/HHF: Heavy Horizontal Formwork
  • EV/VF: Vertical Formwork
  • STR/CLS: Climbing Systems

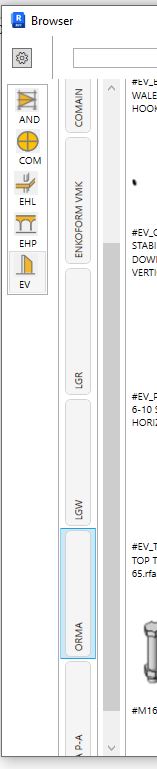

• Inside each system there are products that are specific to the system type, for example in vertical formwork:
  • COMAIN
  • ENKOFORM VMK
  • LGR
  • LGW
  • ORMA
  • ORMA P-A

• Inside each folder there are three type of families (explained in more detail in the ULMA Construction Families section):
  • SETs: This type of family can be differentiated by the hashtag at the beginning of the name.
  • Dynamic families: this type of family can be  differentiated by the last part of the name, which “DYN”
  • Unitary families

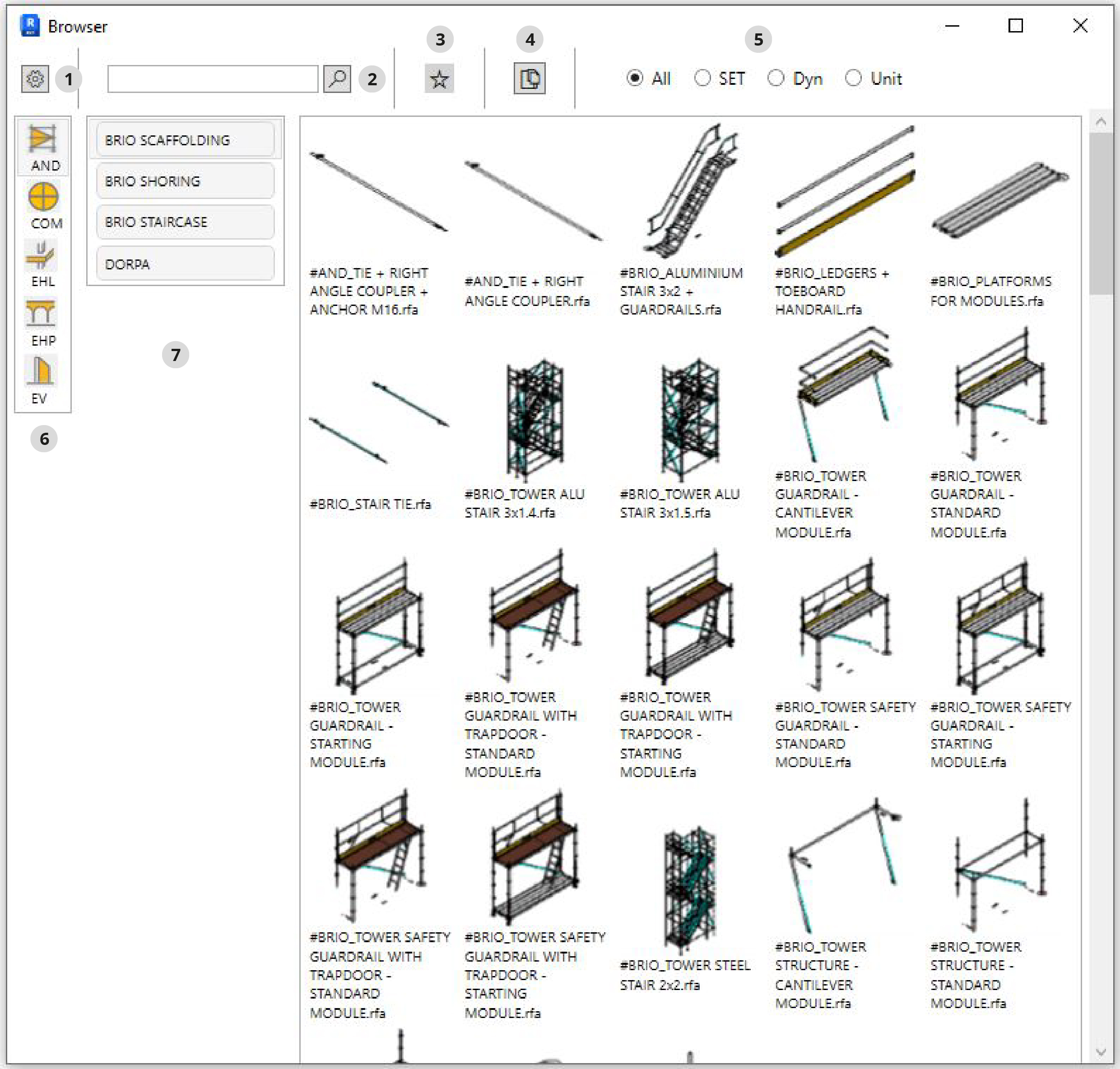

BROWSER INTERFACE DESCRIPTION

1. Settings and options
2. Search tool
3. Favorites
4. Load complete group
5. Filters
6. Product line list
7. Group list
8. Family list

GENERAL INSTRUCTIONS FOR USING

• Load a family into a Revit Project. There are two ways to load a family:
  • Double-click on it.
  • Drag&Drop into the project.

•  Filter the displayed family list. Filters can be used to show only families of a certain type:
  • Assemblies: SET.
  • Dynamic (multicode): Dyn.
  • Unitary (articles): Unit.

ACCESS TO FAVORITE FAMILIES

The user must click on the [Favourite] button to use the favourite family list:

Right clicking on any family will display the following options:

• Add to favorites.
• Remove from favorites.

FAMILY SEARCH TOOL

Type a text and click on the [Search] button to find all the families that contain that text:

LOAD ALL THE FAMILIES OF A GROUP

Click on the [Load group] button to load into the project all the families belonging to the displayed group:

SHOW SETS BIG IMAGE OR HELP DOCUMENT

Right-click on any family that is a SET to show the corresponding BIG image or help document:

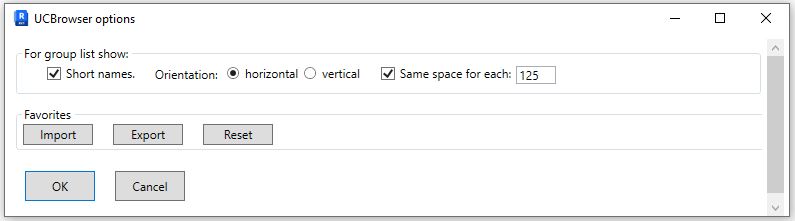

SETTINGS AND OPTIONS

• Presentation options of the group list
• Options with the favourites
