TYPES OF FAMILIES

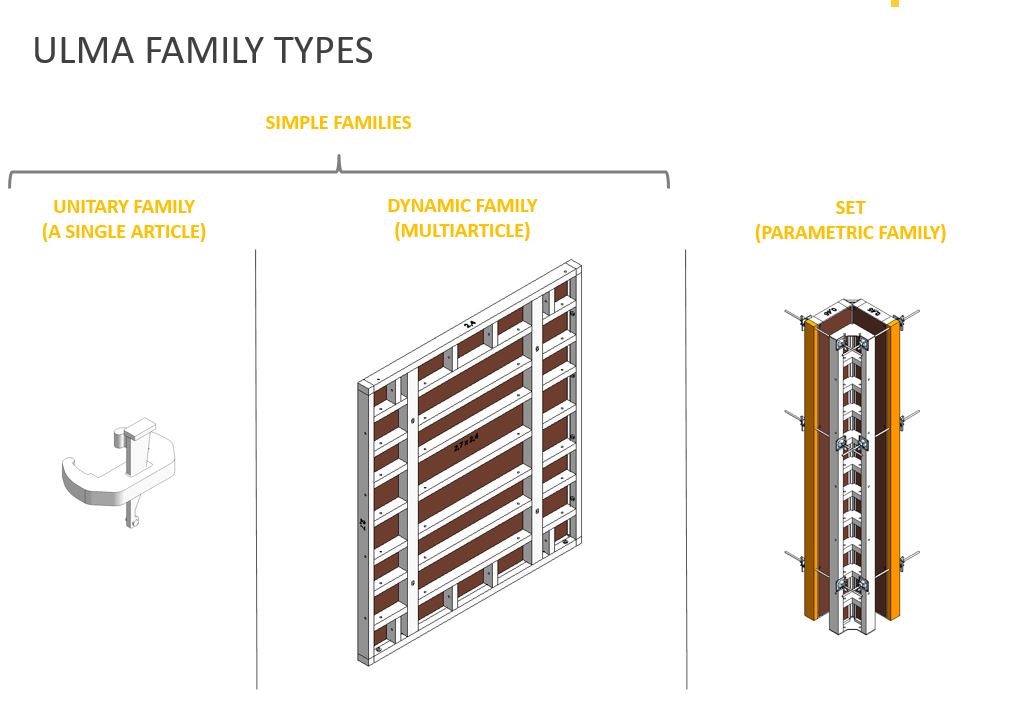

There are different types of families in the library.
- Unitary families: Simple families, one item code for each family.
- Multiarticle families: There are more than one code in the family and it is possible to enable one or the other through dynamism. There are two types of multi-article families:
- Dynamic: The item will change depending on the dimensions of the family. The user must input the correct value in the properties or adjust the family accordingly.

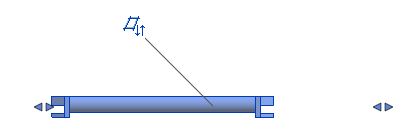

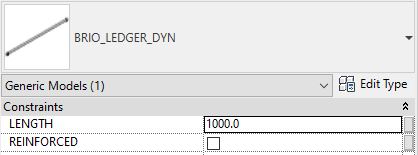

Example: BRIO_LEDGER_DYN
-

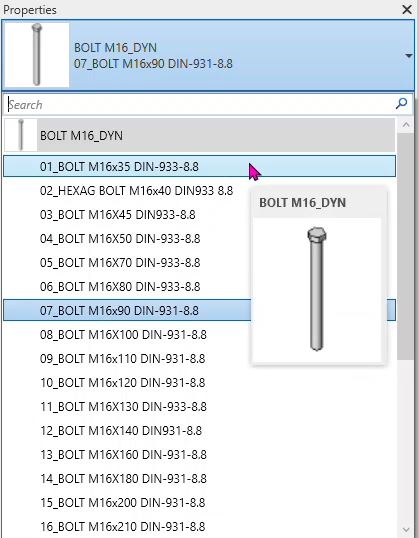

- By types: The user must select the desired type.

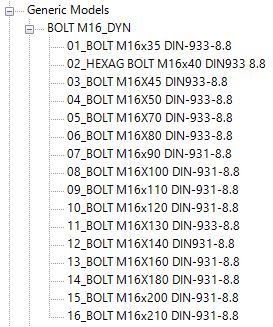

Example: BOLT M16_DYN
- SETs: Is a family that contains nested families. Those grouped families have some parameters that allow the personalised setting of the group. It is composed of more than one item code. Note: This type of families will only be available with the PRO version.
NOMENCLATURE OF FAMILIES
To differentiate the family types, the user can check the nomenclature.
| BROWSER IMAGE | DESCRIPTION | |
|
|
Unitary families will have the code of the item. Example: AND_ADJUST BASE O5 WITH COUPLER_2129404 |
|
|
|
Multi-article families will have a “DYN” at the end of their name. Example: 3 LAYER PLYWOOD_DYN |
|
|
|
SETs will have a “#” at the beginning of their name. Example: #AND_TIE + RIGHT ANGLE COUPLER + ANCHOR M16 |
