This tool renumbers the sheets in a project. It is used when a new sheet is created and the user needs to classify it between the sheets already created.

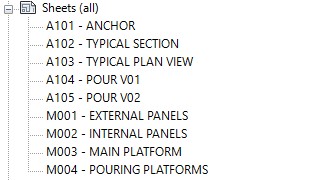

In the following example, the user needs to renumber the new sheet that has been created (M004 – MAIN PLATFORM) as the third sheet (M003 – MAIN PLATFORM) and the sheet that the user has numbered as the third sheet as the fourth sheet (M004 –POURING PLATFORMS):

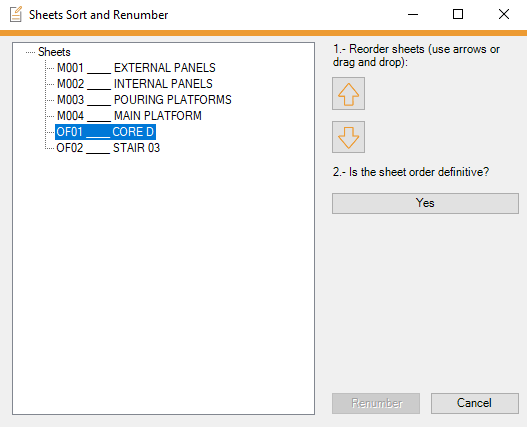

To do this, the user must first place the sheets in the final order desired by dragging them in the menu or using the arrows. Once the sheets are organized, click the “Yes “button.
Then the sheets to be renumbered must be selected using the “Selection” button. Unless the user wants to renumber all the sheets created in the project, in that case the “All sheets” button would be selected.

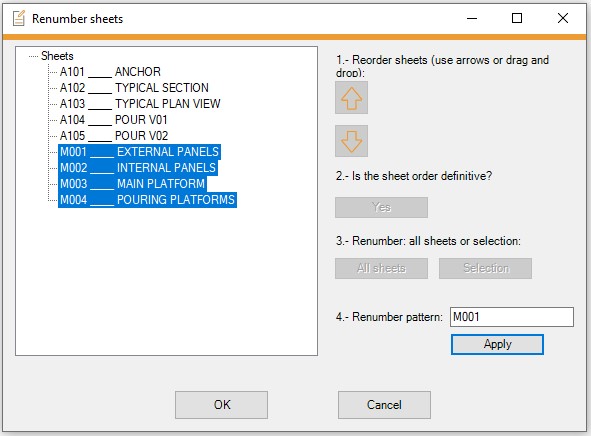

Then the pattern with which the user wants to number the selected sheets must be written. Click on the [Apply] button to see the provisional result. If the result is as desired, click the [Ok] button.
