Shoring parametrics: T-60 Shoring [PRO]

The [T-60] button builds the T-60 shoring based on a user-configured grid in a plan view. Once the shoring has been assembled, the user can choose to generate a group, an assembly or to use individual components in the project.

STEPS TO USE

• Activate a plan view.
• Execute “T-60” button.
• By default, a 1,5 x 1,5 tower grid is drawn at the internal coordinates of the project and two pop-up windows are displayed. One for the vertical layout (V) and one for the horizontal layout (H).

• Place the grid in the desired position and angle using Revit commands “Move” and “Rotate”.
• Set the desired widths for each tower, reinforcement (0,7/0,35) or span. The tool does not consider connected towers.
• Use the different buttons that allows to:
•

BUTTON	DESCRIPTION
	Use the button to change heads orientation.
	Maintain pressed to view the heads in the grid.
	Use the buttons to add or remove towers, reinforcement or spans grid lines.
	Select Span to define spaces between towers. By clicking span, the user can write the desired distance in Width.

• Once the desired grid is obtained, press “Next”

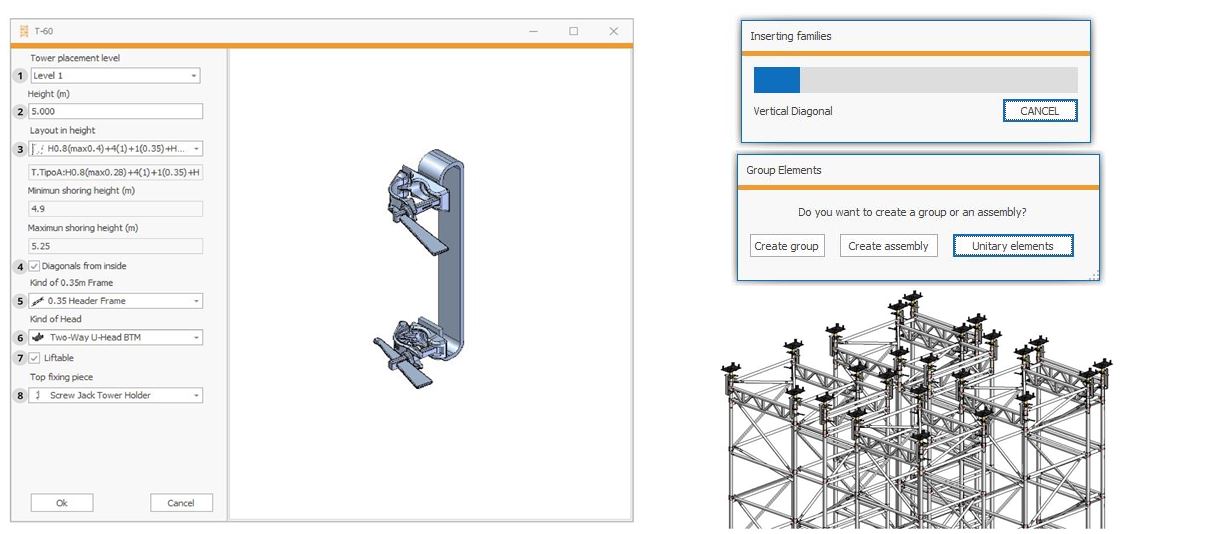

• Fill in the configuration menu and click [OK] button:

1. Tower placement level
2. Height
3. Layout in Height
4.  To assembly diagonals inside the towers
5. Type of 0,35 frame
6. Type of  head
7.  to be lift able
8. Top fixing piece if lift able

• The application will load and insert families.
• Once the shoring is created, the user can choose:
  • Create a group
  • Create an assembly
  • Simple families
