Shoring parametrics: BRIO Shoring [PRO]

The [BRIO] button builds BRIO shoring based on a user-configured grid in a plan view. Once the shoring has been assembled, the user can choose to generate a group, an assembly or use the simple elements in the project.

STEPS TO USE

• Activate a plan view.
• Execute “BRIO” button.

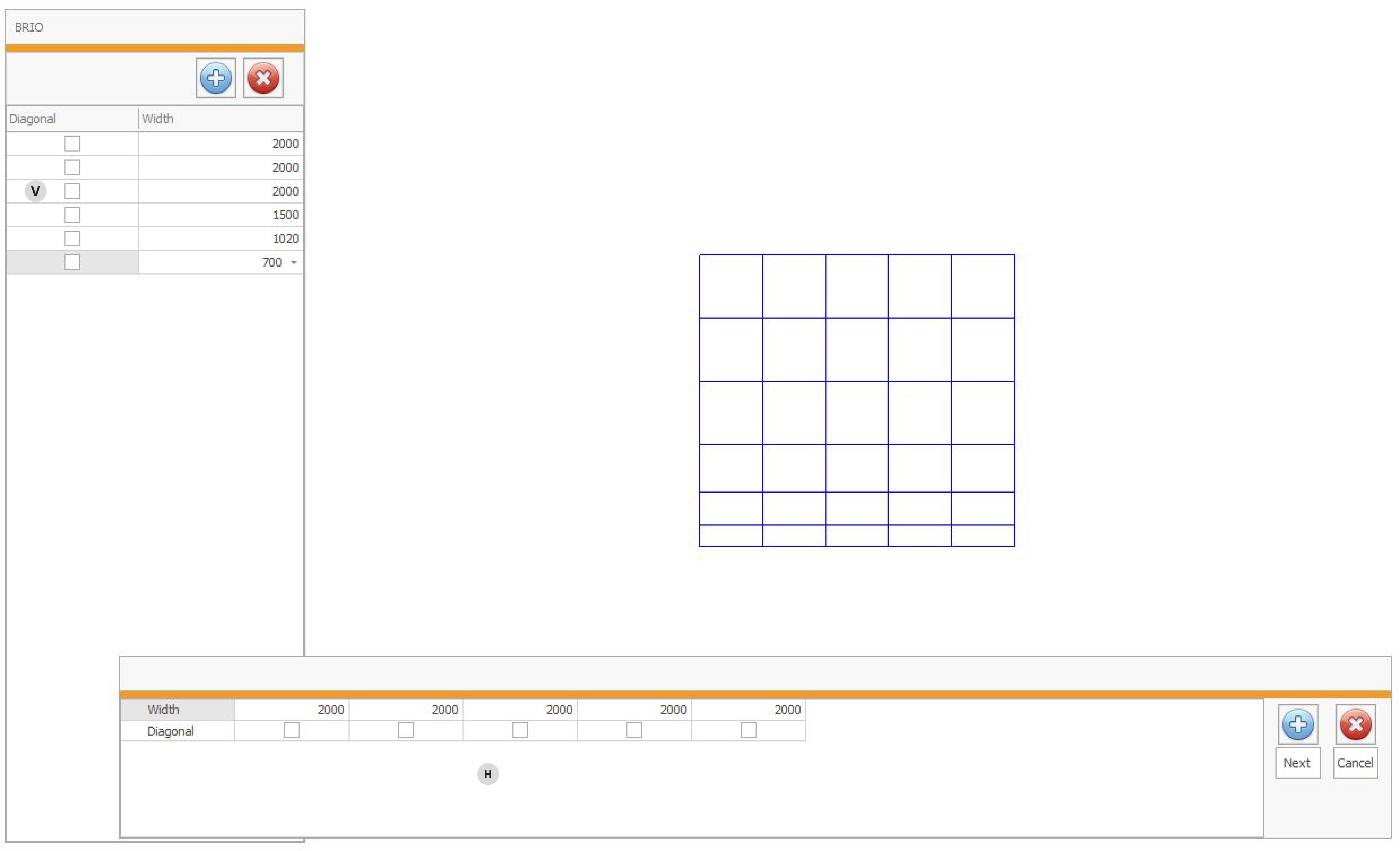

• By default, a 2 x 2 grid is drawn  at the internal coordinates of the project and two pop-up windows are displayed. One for the vertical spans (V) and one for the horizontal spans (H).

• Place the grid in the desired position and angle using Revit commands “Move” and “Rotate”.

BUTTON	DESCRIPTION
	Use the buttons to add or remove towers, reinforcement or spans grid lines.
	Select Diagonal for the spans to diagonalize

• Set the desired widths for each span.
• Once the desired grid is obtained, press “Next”

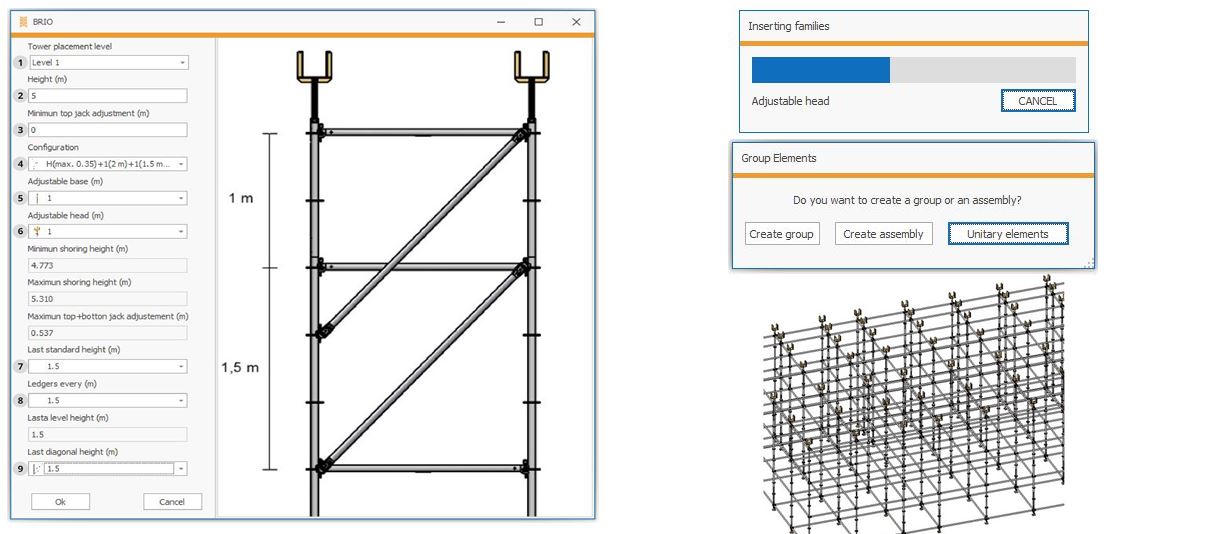

• Fill in the configuration menu:

1. Tower placement level
2. Height
3. Configuration
4. Minimum top Jack adjustment
5. Adjustable base
6. Adjustable head
7. Last standard height
8. Ledgers every height
9. Last diagonal height

• The application will load and insert families.
• Once the shoring is created, the user can choose:
  • Create a group
  • Create an assembly
  • Simple families
